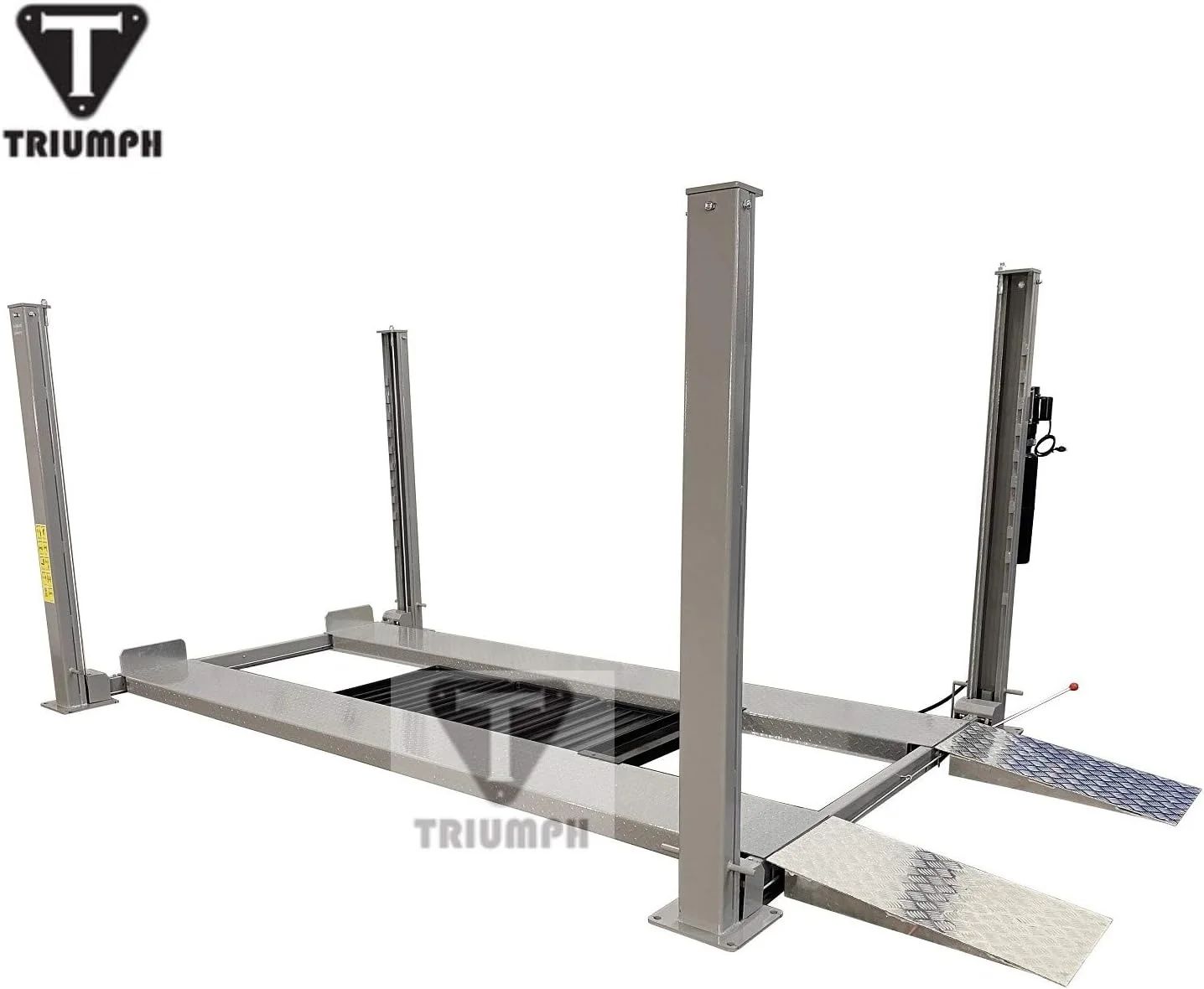

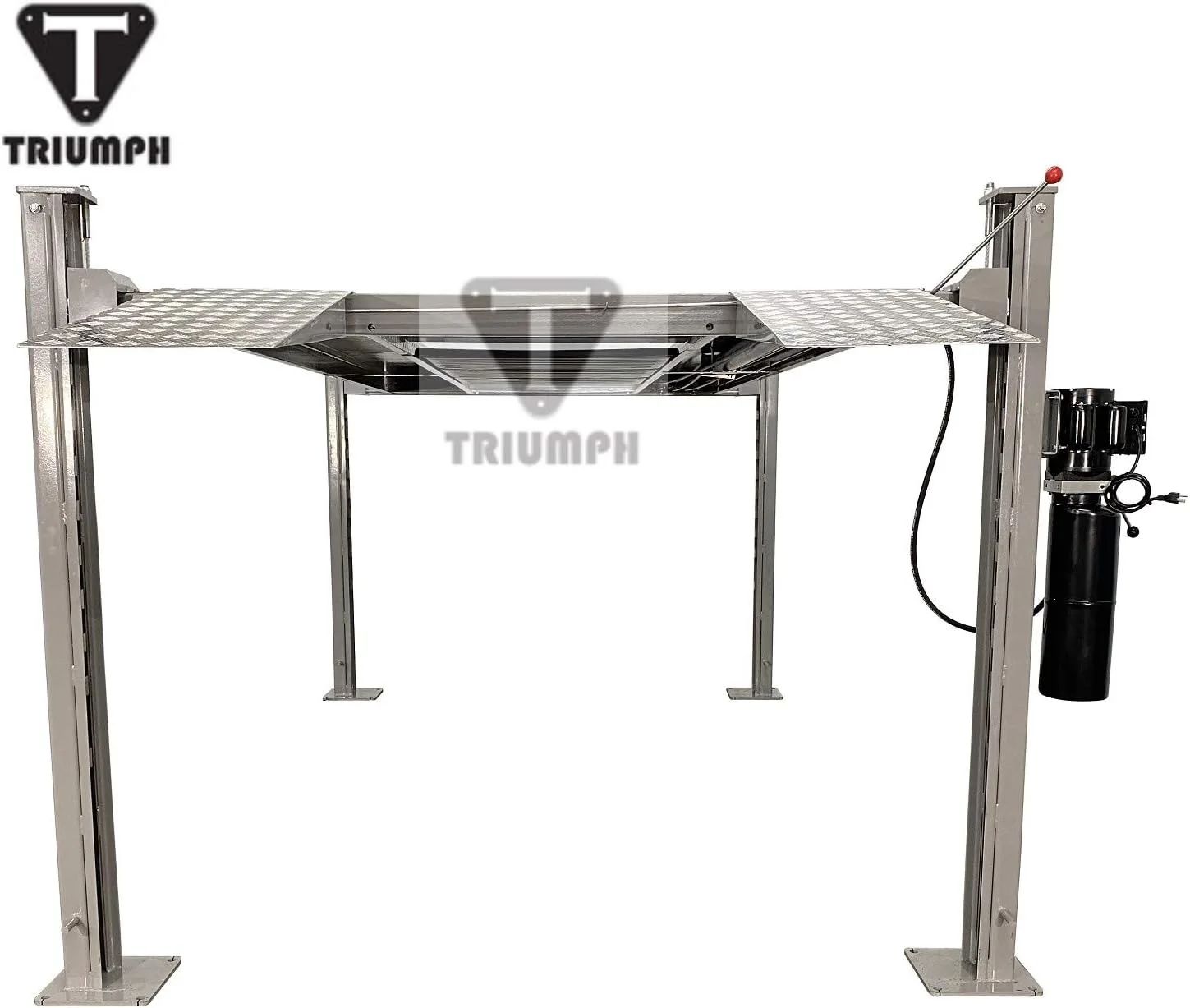

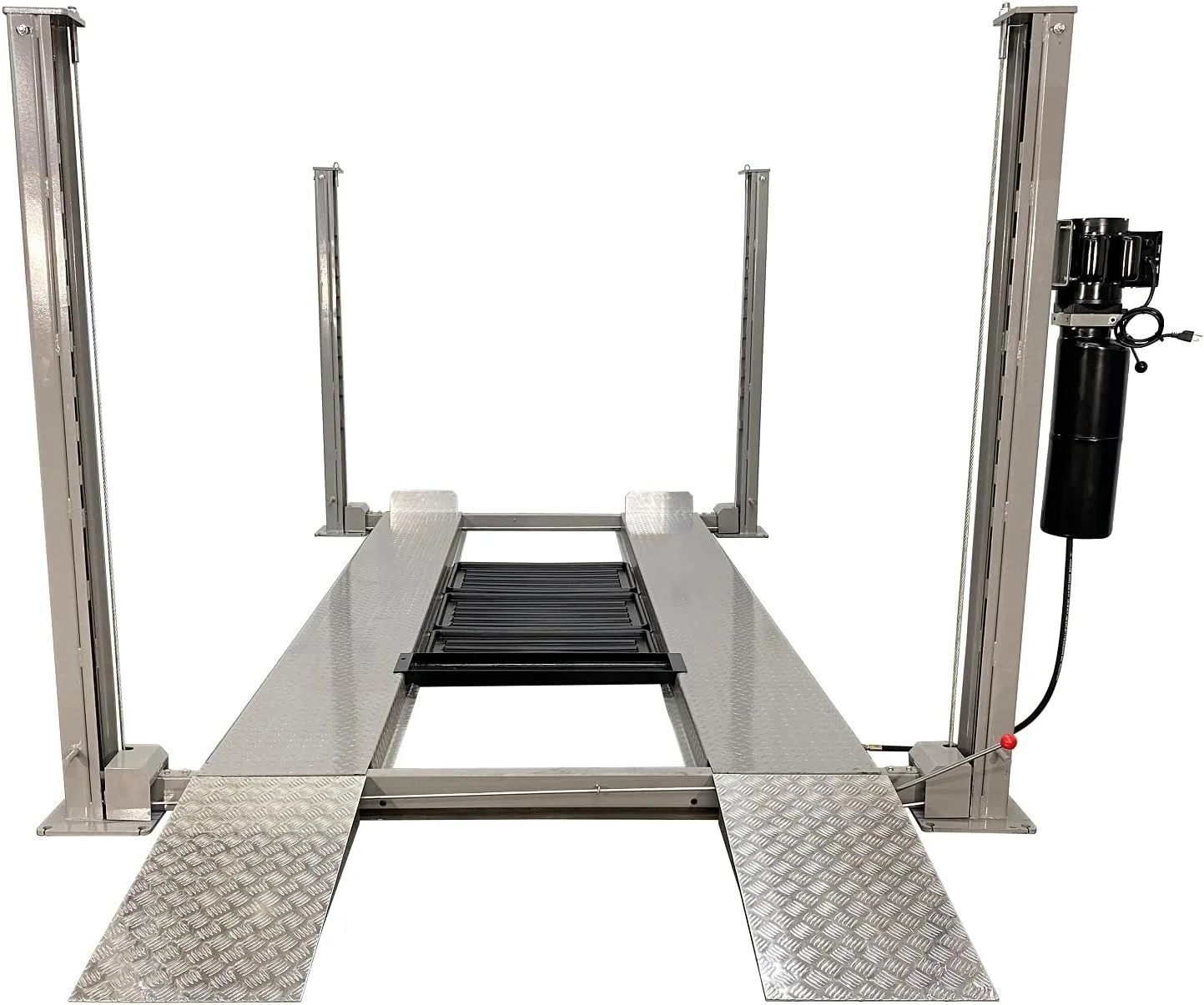

Triumph NSS-8XLT 8,000 lb 4-Post Car Lift
Industrial stability, smooth lifting, and secure locking—built for real garage work.
The Triumph NSS-8XLT is a heavy-duty four-post automotive lift engineered for a rated capacity of
8,000 lbs (3,628 kg). Its drive-on design provides excellent stability for cars, SUVs, and light trucks—ideal for
storage, maintenance, detailing, and undercar access in both home and professional garages.
If you want a lift that feels solid, lifts smoothly, and locks securely at multiple heights, the NSS-8XLT is built to deliver
dependable performance day after day.
Why Customers Choose the NSS-8XLT
- 8,000 lb capacity for wide vehicle compatibility
- Four-post drive-on stability for confident lifting and storage

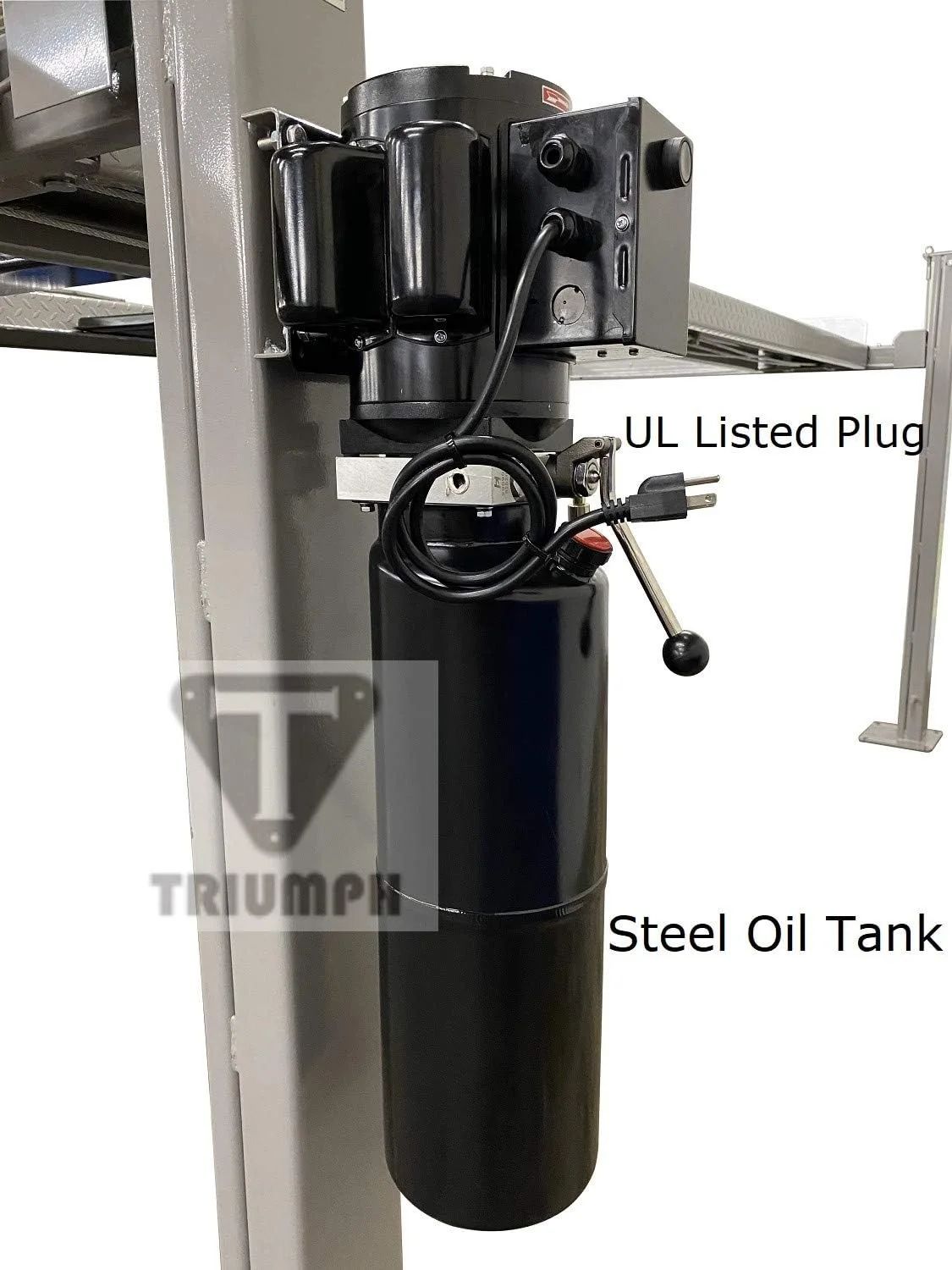

- Smooth hydraulic operation for controlled lifting
- 10 locking positions for flexible working height
- Single-point lock release for faster workflow
- Heavy-duty steel runways for stable load distribution

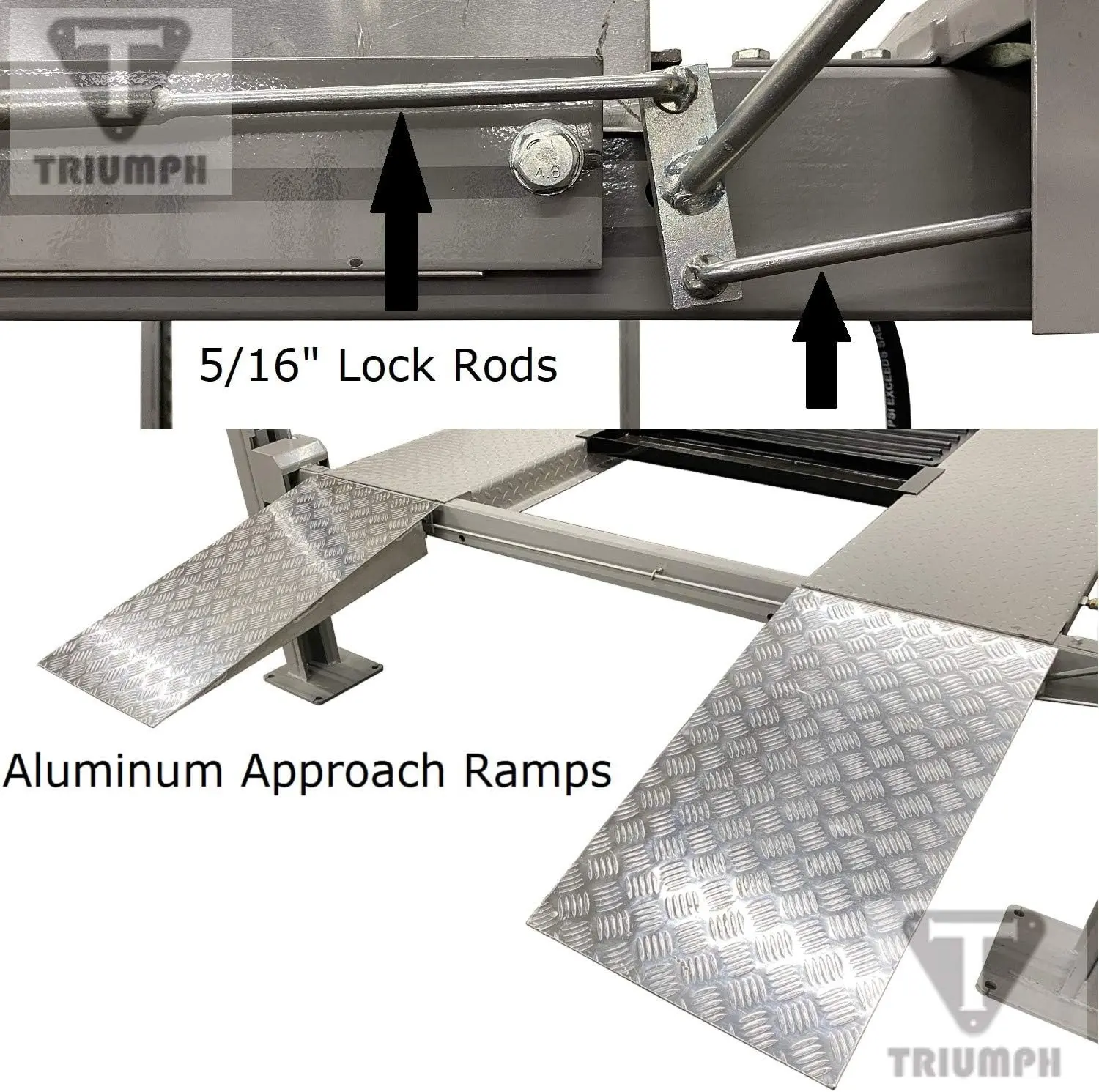

- Approach ramps included for easy vehicle entry/exit
- Built for daily use in garages and workshops
Best For
- Space-saving vehicle storage (park one vehicle above another)
- Routine maintenance, inspections, and service
- Detailing, cleaning, and undercar access
- Collectors, enthusiasts, and professional shops
Technical Specifications
| Parameter | Details |
|---|---|
| Rated Capacity | 8,000 lbs |
| Overall Height | 94 in (239 cm) |
| Overall Length | 190 in (483 cm) |
| Overall Width | 112 in (284 cm) |
| Maximum Lift Height | 82 in (208 cm) |
| Height Under Runway | 79 in (201 cm) |
| Runway Length | 180 in (457 cm) |
| Drive-Thru Width | 99 in (251 cm) |
| Runway Width | 18 in (46 cm) |
| Between Runways | 37 in (94 cm) |
| Lowered Height | 5 in (13 cm) |
| Locking Positions | 10 |
| Base Plate Size | 12 Ă— 12 in (30 Ă— 30 cm) |
| Lock Release | Single Point |
| Lift Time | 40 seconds |
| Voltage | 110 V |
| Shipping Weight | 1,800 lbs (816 kg) |
Shipping & Installation
Delivered by freight truck in protective industrial packaging. Assembly and anchoring are required for secure operation.
Install only on a level, reinforced concrete surface for maximum safety and performance.
Warranty Coverage
Includes manufacturer warranty coverage. Warranty terms vary by product and application. Proof of purchase is required for any warranty claim.
Safety Notice
Always follow manufacturer lifting procedures. Ensure the vehicle is centered on the runways and safety locks are fully engaged
before working underneath. Never exceed the rated capacity.
