Amgo BP-9 9,000 lb 2 Post Lift
AMGO BP-9 Base Plate 2-Post Lift – 9,000 lb Capacity
The AMGO BP-9 2-Post Lift offers powerful lifting performance in a compact, low-ceiling-friendly design — making it the perfect choice for both professional auto shops and home garages with space limitations. With a 9,000 lb lifting capacity and symmetric 3-stage arms, the BP-9 is built to accommodate a wide range of vehicles from sedans to light trucks.
Engineered for safety and ease of use, the BP-9 includes a dual-safety lock system and a single-point manual release, letting you unlock both columns from one side. Additional features like automatic arm restraints, aero synchronization cables, and self-lubricating UHMW polyethylene sliders ensure smooth, precise, and long-lasting operation.
The BP-9 features four 3-stage retractable arms that offer extended reach and flexibility, ideal for lifting vehicles with varied frame configurations. Standard features like aero synchronization cables, self-lubricating UHMW sliders, automatic arm restraints, and detachable toe guards reflect AMGO’s commitment to durability, convenience, and safety.
As part of our top-tier lift lineup at Gearforce USA, the AMGO BP-9 is an outstanding choice for those who need a high-performance lift in spaces where overhead clearance is limited — without compromising on functionality or vehicle access.

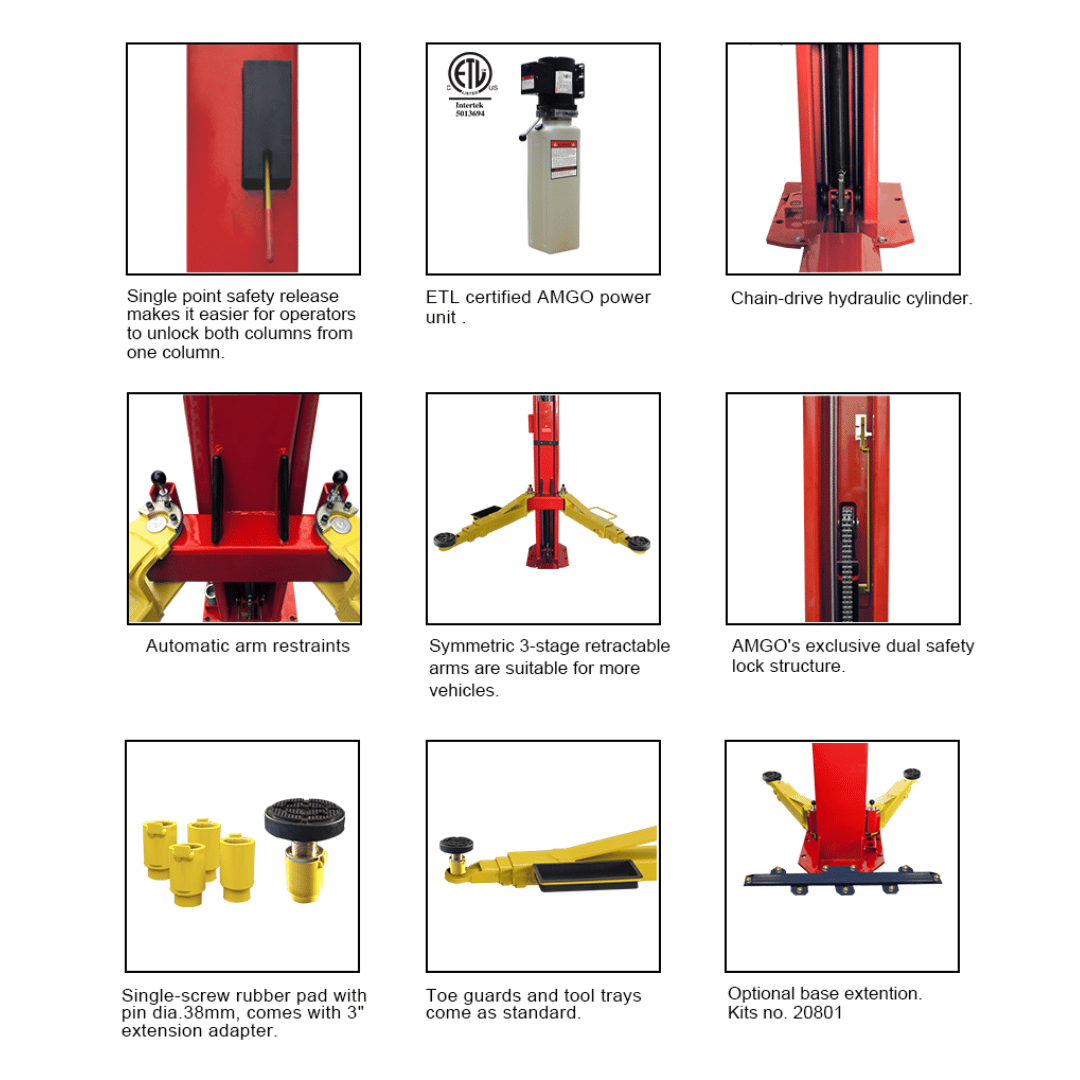

Key Features
- 9,000 lb lifting capacity – accommodates a wide range of vehicles
- Symmetric 3-stage retractable arms – large swing range for optimal vehicle access
- Low ceiling compatible – designed for 9 ft or higher ceiling heights
- Base plate design – ensures stability in compact lift setups
- Dual-safety lock structure – added protection at multiple lift heights
- Single-point manual safety lock release – disengage both posts from one side
- Automatic arm restraints – lock securely during vehicle lift
- Self-lubricating UHMW Polyethylene sliders – reduce wear and noise over time
- Aero sync cables – smooth, balanced lifting performance
- Detachable toe guards and tool trays – built-in safety and storage convenience
- Max lifting height: 76" (with adapter) | Drive-thru clearance: 98 15/16"
- Operates on a 2.0 HP motor with 110V power – reliable and efficient

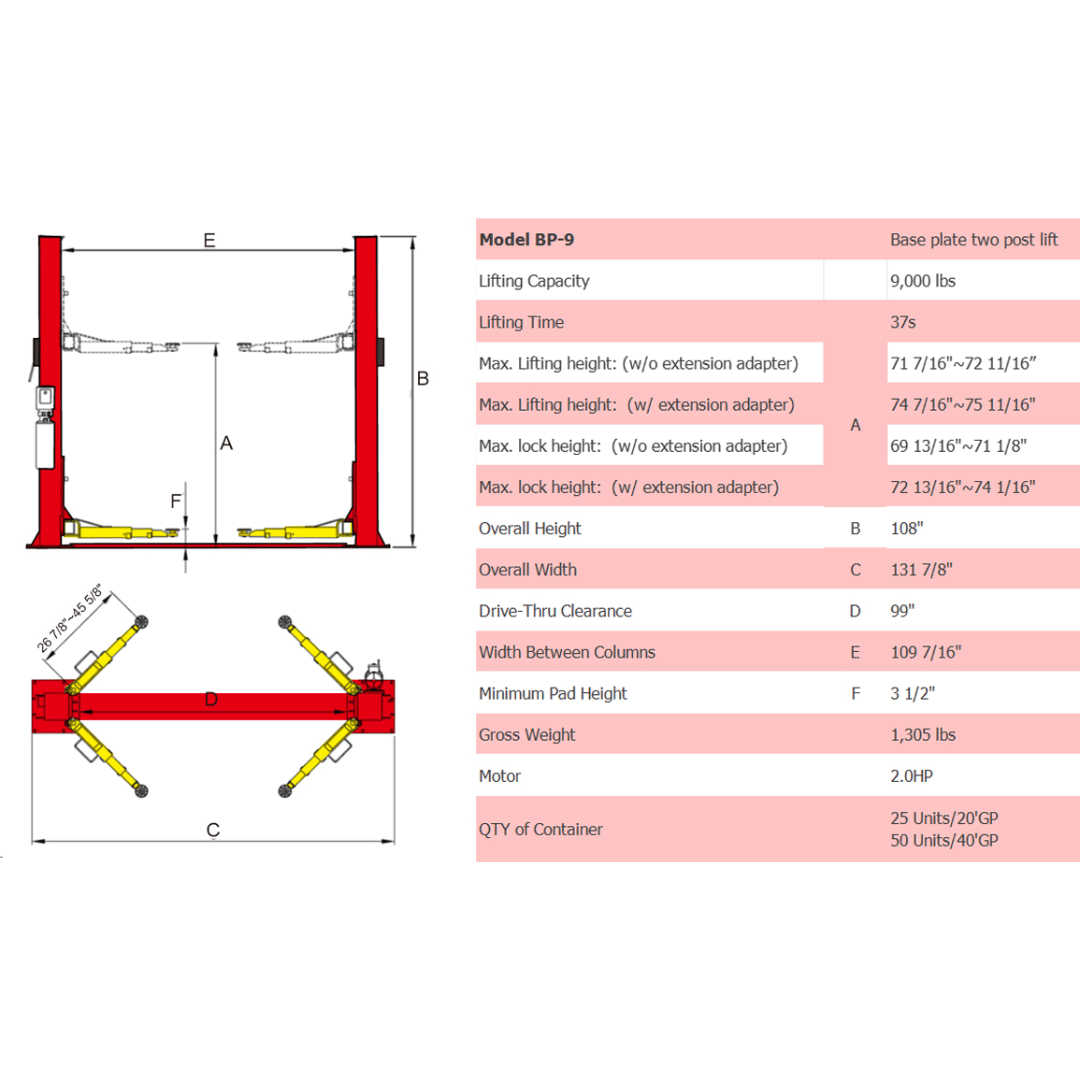

Product Specifications
| Model | BP-9 |
|---|---|
| Lifting Capacity | 9,000 lbs |
| Lifting Time | 37S |
| A: Max. Lifting Height: (w/o extension adapter) | 72" |
| A: Max. Lifting Height: (w/ extension adapter) | 76" |
| A: Max. Lock Height: (w/o extension adapter) | 70 1/4" |
| A: Max. Lock Height: (w/ extension adapter) | 74 1/4" |
| B: Overall Height | 108" |
| C: Overall Width | 131 7/8" |
| D: Drive Thru Clearance | 98 15/16" |
| E: Width Between Columns | 109 7/16" |
| F: Minimum Pad Height | 3 1/2" |
| Motor | 2.0HP |
| Gross Weight | 1,305 lbs |
| QTY of Container | 25 Units/20'GP | 50 Units/40'GP |
